Deep Sensing Research: Frontier Technologies for Underground Infrastructure Detection

Project: Making the Underground Visible -- be.liviu.ai Target Area: Wilmersdorfer Strasse, Charlottenburg, Berlin Date: 2026-03-25 Research Panel: 7 ultra-expert researchers (geophysics, remote sensing, quantum sensing, IoT/telecom, urban planning, satellite EO, data integration)

Executive Summary

Top 5 Actionable Technologies for Wilmersdorfer Strasse (Ranked by Feasibility)

Berlin-Specific Infrastructure Context

Wilmersdorfer Strasse sits atop:

• U7 tunnel (opened 1978, passes under the street before swinging under the Stadtbahn)
• BWB water network (part of 7,816 km pipe network, 275,000 building connections)
• BWB sewer network (part of 9,746 km system; Charlottenburg area likely combined sewer)
• BEW district heating (part of 2,000+ km network, largest in Western Europe)
• Stromnetz Berlin electricity (99% underground cables in Berlin)
• GASAG gas network
• Telecom (Deutsche Telekom, fiber, copper)

1. Fiber Optic DAS/DTS (Distributed Acoustic/Temperature Sensing)

Technology Principle

Distributed Acoustic Sensing (DAS) transforms standard fiber optic cables into dense arrays of virtual sensors by exploiting Rayleigh backscattering. A coherent laser pulse is sent down the fiber, and the backscattered light is analyzed for phase changes caused by acoustic vibrations or strain. Distributed Temperature Sensing (DTS) uses Raman scattering to measure temperature along the fiber. Together, they can detect leaks (acoustic signature + temperature anomaly), traffic vibrations, pipe bursts, and intrusions.

Key innovation: existing telecom dark fiber can be repurposed as sensors, turning Berlin's already-buried fiber infrastructure into a sensing network without new trenching.

Detection Capabilities

Sources: OptaSense, Silixa, DALI Monitoring

Berlin-Specific Deployments & Data

No confirmed BWB or Berlin-specific fiber sensing pilot was found in public sources. However:

• The DALI system has demonstrated internal-fiber sensing on a 6 km, 1000 mm drinking water pipeline with 5 m accuracy leak detection (Pipeline Technology Conference)
• The Hamburg WAVE proto-network uses DAS on telecom fiber for seismic monitoring at DESY and University of Hamburg (arXiv 2511.17141)
• Deutsche Telekom operates extensive dark fiber in Berlin that could theoretically be leased for DAS sensing

Key Vendors & Products

Pricing: DAS interrogator units range EUR 80,000-250,000. Dark fiber lease in urban Germany approximately EUR 500-2,000/strand/mile/year. Total project cost for a 1 km pilot: EUR 100K-300K including equipment, fiber access, and integration.

Integration with Three.js Model

• DAS data is inherently linear (along-fiber distance). Convert fiber path coordinates to Three.js world coordinates using a known fiber route map.
• Acoustic events can be displayed as animated pulses along the fiber path.
• Temperature profiles can be visualized as color-coded tubes following pipe routes.
• Real-time streaming possible via WebSocket from DAS interrogator API to Three.js frontend.
• Library: iTowns (Three.js-based geospatial framework) supports WFS/WMS overlay.

TRL & Feasibility Rating

• TRL: 8-9 (commercial products deployed globally; urban telecom fiber DAS demonstrated)
• Wilmersdorfer Str. applicability: MEDIUM -- requires partnership with Deutsche Telekom or BWB for fiber access. High value if dark fiber routes along the street can be identified.
• Data integration: HIGH -- linear data maps directly to 3D pipe geometry.
• Recommendation: Medium-term (6-12 months). Pursue partnership with AP Sensing (German HQ) and Deutsche Telekom for a dark fiber DAS pilot on Wilmersdorfer Str.

2. LoRaWAN / IoT Underground Sensors

Technology Principle

Low-Power Wide-Area Network (LPWAN) sensors placed in manholes, utility vaults, and underground chambers transmit telemetry (water level, gas concentration, temperature, humidity, vibration, manhole cover status) over LoRaWAN at very low power consumption. Battery life of 5-10 years. LoRaWAN signals can penetrate from below heavy cast-iron manhole covers through dense urban environments.

Detection Capabilities

Berlin-Specific Deployments & Data

• Berlin Smart City Strategy ("Gemeinsam Digital: Berlin"): Phase B (2022-2026) includes 5 pilot projects in areas including water management and data use in emergencies. The strategy runs until December 2026 with federal funding (smart-city-berlin.de).
• Stadtwerke Giessen (German public utility) has deployed WILSEN.sonic battery-operated IoT ultrasonic sensors with LoRaWAN for sewer level monitoring (Semtech Blog).
• Smart City Solutions (German company) delivers turn-key LoRaWAN networks for municipal utilities (smart-city-solutions.de).
• The Things Network Berlin community operates public LoRaWAN gateways across Berlin.
• No confirmed Berlin underground sensor deployment found in public sources for Charlottenburg specifically.

Key Vendors & Products

Integration with Three.js Model

• Each sensor is a georeferenced point. Place 3D marker icons at sensor locations in the Three.js scene.
• Real-time data via MQTT/HTTP API from LoRaWAN network server (e.g., The Things Stack, ChirpStack).
• Visualize water levels as animated fill indicators inside manhole/vault 3D models.
• Gas concentrations as color-coded halos. Temperature as heat indicators.
• Dashboard overlay with time-series charts (D3.js integrated with Three.js).

TRL & Feasibility Rating

• TRL: 9 (fully commercial, deployed in German cities)
• Wilmersdorfer Str. applicability: HIGH -- manholes and utility vaults exist along the entire street. Straightforward to deploy 10-20 sensors.
• Data integration: HIGH -- point data with real-time telemetry.
• Cost for pilot: EUR 5K-15K for 20 sensors + 2 gateways + 1-year connectivity.
• Recommendation: Quick win. Deploy a LoRaWAN sensor network in existing manholes along Wilmersdorfer Str. within 2-4 weeks.

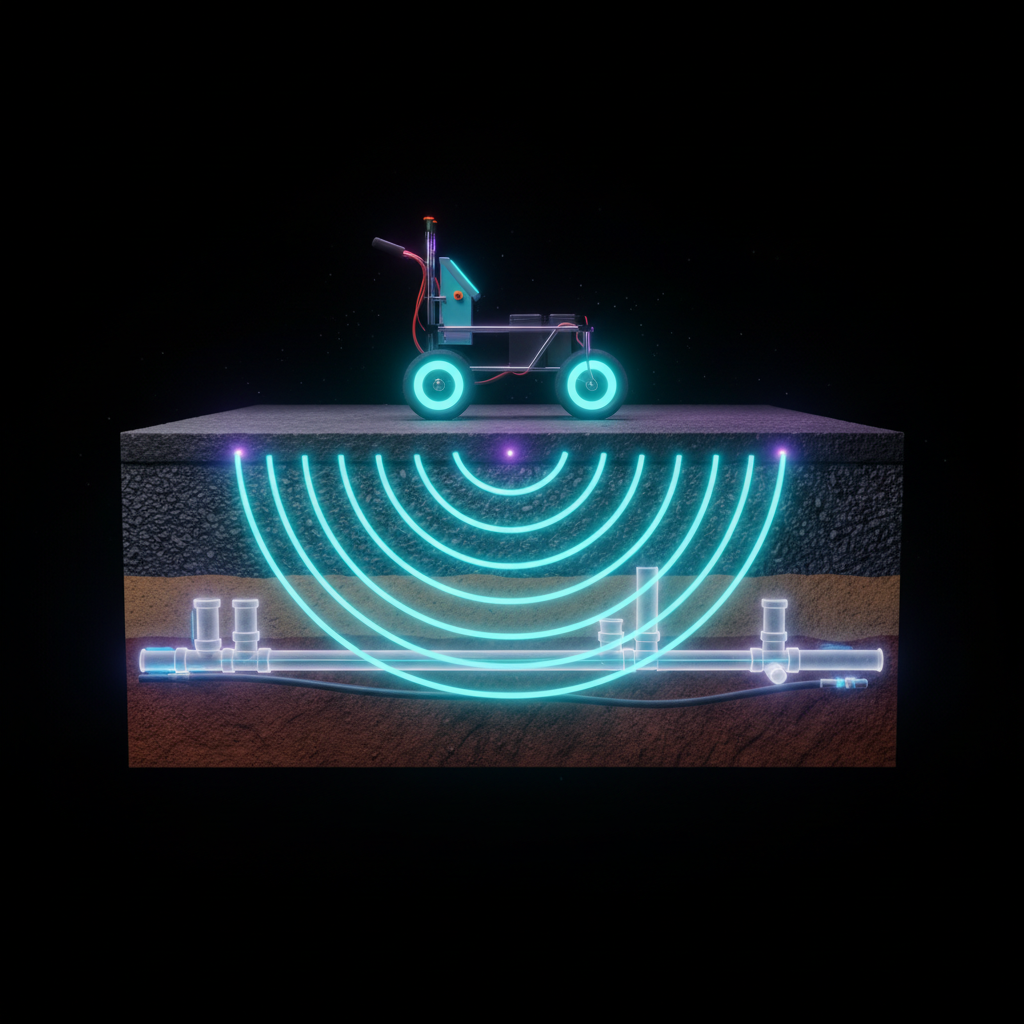

3. Ground Penetrating Radar (GPR)

Technology Principle

GPR transmits short pulses of electromagnetic energy (radio waves) into the ground via an antenna. When these pulses encounter a boundary between materials with different dielectric properties (e.g., soil/pipe, soil/void, soil/cable), part of the energy is reflected back. The return signal's travel time and amplitude reveal the depth and nature of subsurface objects. Dual-frequency systems (e.g., 300/800 MHz) provide both deep penetration and high resolution simultaneously.

Detection Capabilities

Detection targets: water pipes (metal and PVC), gas pipes, electrical conduits, fiber/telecom ducts, sewer pipes, voids/cavities, tunnel structures, rebar in concrete.

Sources: GSSI, ImpulseRadar, GFZ Potsdam

Berlin-Specific Deployments & Data

• GPR utility surveys (Leitungsortung) are standard practice in Berlin before any excavation work, per German regulations.
• DIN 18920 (Schutz von Baumen, Pflanzenbestanden und Vegetationsflachen bei Baumassnahmen) and DIN 4124 (Excavation) reference utility detection requirements.
• Multiple Berlin-based GPR service providers operate (search "Leitungsortung Berlin" or "Leitungssuche Berlin").
• GFZ Helmholtz Centre Potsdam maintains GPR research infrastructure near Berlin (GFZ GPR).
• Recent AI research: a dataset of 2,239 radargram images from GPR surveys in urban environments for deep learning utility detection (ScienceDirect).

Key Vendors & Products

Rental: ~EUR 250/day for basic cart; EUR 1,000-4,000/month for advanced systems. Professional survey service: EUR 1,500-5,000 for a single-street survey (500-800 m like Wilmersdorfer Str.).

Sources: GPR Rental Rates, GPRS Cost Guide

Integration with Three.js Model

• GPR outputs radargrams (B-scans) that are 2D depth slices. Multiple parallel passes create 3D volumes (C-scans).
• Post-processing: Convert detected pipe/cable hyperbolas to XYZ coordinates using GPR software (e.g., RADAN, ReflexW).
• Export pipe centerlines as GeoJSON or CSV, import into Three.js as 3D tube geometries.
• Radargram cross-sections can be displayed as textured planes in the 3D scene for verification.
• Tools: three-geo for coordinate transformation.

TRL & Feasibility Rating

• TRL: 9 (mature, standardized, regulated)
• Wilmersdorfer Str. applicability: HIGHEST -- immediate deployment, well-suited to the pedestrian zone.
• Data integration: HIGH -- direct pipe/cable geometry for Three.js.
• Recommendation: QUICK WIN #1. Commission a professional GPR survey of Wilmersdorfer Str. Cost: EUR 2K-5K. Timeline: 1-2 days of fieldwork, 1 week processing.

4. InSAR / Satellite Interferometry

Technology Principle

Interferometric Synthetic Aperture Radar (InSAR) compares SAR images of the same area taken at different times to detect millimeter-scale ground surface deformation. Persistent Scatterer InSAR (PS-InSAR) tracks individual reflectors (buildings, poles, infrastructure) over time to build deformation time series. Ground subsidence can indicate: underground void collapse, water main leaks (soil washout), tunnel settlement, or construction-induced movement.

Detection Capabilities

Sources: Nature Review, DLR TerraSAR-X

Berlin-Specific Deployments & Data

• European Ground Motion Service (EGMS): Free, pan-European InSAR ground motion data derived from Sentinel-1. Berlin data available at egms.land.copernicus.eu. Provides Basic (measurement points with velocity and time series) and Calibrated (ortho-referenced) products. Data from 2018-2022 available for download (EGMS Portal).
• German Ground Motion Service (BBD / Bodenbewegungsdienst Deutschland): Operated by BGR (Federal Institute for Geosciences and Natural Resources). Provides Germany-specific InSAR ground motion data complementary to EGMS (Springer comparison study).
• TerraSAR-X: German satellite (DLR), operational, with enough consumables for operations through at least 2026. High-resolution X-band data available for Berlin through DLR science proposals or commercial channels (eoPortal).
• Sentinel-1C: First InSAR dataset released February 2025, extending the Sentinel-1 constellation (Copernicus).

Key Vendors & Products

Integration with Three.js Model

• EGMS data exports as CSV with lat/lon/velocity/time-series per persistent scatterer point.
• Import PS points into Three.js as colored spheres or heat-mapped ground overlay.
• Color scale: green (stable) to red (subsiding) based on mm/year velocity.
• Time-series animation: show ground motion evolution over years.
• Overlay on Berlin 3D Stadtmodell buildings to identify structures with differential settlement.

TRL & Feasibility Rating

• TRL: 8-9 (operational services, free data)
• Wilmersdorfer Str. applicability: HIGH -- dense urban area = excellent PS point density. Free EGMS data available immediately.
• Data integration: HIGH -- point cloud with attributes maps directly to Three.js.
• Recommendation: QUICK WIN #2. Download EGMS data for Charlottenburg. Overlay on Three.js model. Cost: EUR 0. Timeline: 1-2 days of processing.

5. Thermal Infrared

Technology Principle

Thermal infrared (TIR) cameras detect emitted radiation in the 8-14 micrometer wavelength range, measuring surface temperature variations. Underground hot-water pipes (district heating), steam lines, and sewers create thermal signatures detectable at the surface. Leaks, insulation failures, and shallow infrastructure produce temperature anomalies of 0.5-5 degC that are invisible to the eye but clear in thermal imagery. Drone-mounted TIR cameras enable rapid, high-resolution surveys of entire streets.

Detection Capabilities

Sources: ScienceDirect UAV ML study, Vertex Access case study, Frontiers drone leak concepts

Berlin-Specific Deployments & Data

• BEW Berliner Energie und Warme (formerly Vattenfall Warme Berlin, acquired by State of Berlin May 2024) operates the 2,000+ km district heating network -- the largest in Western Europe. The network runs through Charlottenburg. BEW plans to invest EUR 3.3 billion in the network (berlin.de).
• District heating pipe routes in Charlottenburg are not publicly available as open data but are accessible via the infrest Leico portal for construction planning.
• Thermal drone surveys are a proven method for Fernwarme leak detection in Germany, though no specific Berlin deployment was found in public sources.
• LiDAR intensity has been recently demonstrated for detecting wet surfaces from underground water leaks (Tandfonline 2025 study).

Key Vendors & Products

Cost: Drone thermal survey of Wilmersdorfer Str. (800 m): EUR 3K-8K for a professional service. Equipment rental: EUR 500-1,500/day for drone + thermal camera.

Integration with Three.js Model

• Thermal orthomosaic (georeferenced thermal image) overlaid as ground texture in Three.js.
• Hot spots rendered as glowing markers or heat-map overlays on the street surface.
• Combine with pipe route data to correlate thermal anomalies with specific utility lines.
• Time-lapse comparison (seasonal surveys) visualized as slider animation.

TRL & Feasibility Rating

• TRL: 8-9 (mature technology, proven for district heating)
• Wilmersdorfer Str. applicability: HIGH -- BEW district heating routes through the area, dense utility zone.
• Data integration: HIGH -- raster imagery maps directly to Three.js ground plane.
• Note: Drone flights in Berlin require EASA Open Category registration and, for urban areas, Specific Category authorization from LBA. Wilmersdorfer Str. is in a controlled airspace zone near Berlin-Tegel (though the airport is closed, airspace restrictions may still apply).
• Recommendation: Medium-term. Schedule a pre-dawn thermal drone survey in autumn 2026. Partner with BEW for ground truth validation.

6. WiFi / RF Tomography

Technology Principle

RF tomography uses the attenuation, scattering, and travel-time variations of radio frequency signals passing through the ground to reconstruct subsurface images. In theory, existing WiFi access points, cellular base stations, or purpose-deployed transmitters on the surface can be used to create a distributed sensor network. The signals that penetrate the ground interact with underground objects (voids, pipes, tunnels), and tomographic inversion algorithms reconstruct a 3D image of subsurface dielectric properties.

Detection Capabilities

Sources: IEEE RF Tomography, ProQuest dissertation, Nature Scientific Reports 2025

Berlin-Specific Deployments & Data

• No known Berlin deployments for underground infrastructure detection using RF/WiFi tomography.
• TU Berlin has strong radar and signal processing research groups, but no specific underground WiFi tomography project was identified.
• The technology remains primarily academic, with most demonstrations in military tunnel detection scenarios (e.g., DTIC/US Army-funded research).
• WiFi-based Radio Tomography Imaging (RTI) using CNN models and WiFi RSSI has been demonstrated for indoor localization (2025 Nature study), but not for underground utility detection.

Key Vendors & Products

No commercial vendors offer RF tomography specifically for urban underground infrastructure detection. This is a purely research-stage technology.

Integration with Three.js Model

• If implemented: 3D volumetric data (voxel grid) could be rendered as semi-transparent volumes or isosurfaces in Three.js.
• Would require custom WebGL shaders for volumetric rendering.

TRL & Feasibility Rating

• TRL: 3-4 (laboratory demonstrations, military research prototypes)
• Wilmersdorfer Str. applicability: LOW -- high WiFi frequencies cannot penetrate urban ground effectively. Would require purpose-built low-frequency system.
• Data integration: MEDIUM (if data existed)
• Recommendation: Long-term research only. Not practical for the project in its current state. Monitor TU Berlin publications for breakthroughs.

7. Acoustic / Seismic Methods

Technology Principle

Multiple acoustic and seismic techniques apply to underground infrastructure:

1. Acoustic Leak Detection: Correlators listen to sound propagation along pipes to triangulate leak positions. Water escaping under pressure creates characteristic acoustic signatures (50 Hz - 3 kHz).
2. Acoustic Emission (AE): Passive listening for sounds generated by pipe stress, corrosion, or leaks.
3. Passive Ambient Noise Tomography (ANT): Uses background urban noise (traffic, construction, footsteps) as a seismic source. Cross-correlation of noise recorded at multiple sensors reveals shear-wave velocity structure, mapping underground layers and objects.
4. MASW/MAPS: Multichannel Analysis of Surface Waves uses surface wave dispersion to profile subsurface shear-wave velocity down to 100 m depth.
5. DAS-based ambient noise imaging: Using fiber optic DAS to record urban ambient noise for subsurface tomography.

Detection Capabilities

Sources: Echologics LeakFinder-ST, ScienceDirect AE method, GeoScienceWorld DAS subsurface imaging

Berlin-Specific Deployments & Data

• BWB likely uses acoustic leak detection internally (standard water utility practice), though no public documentation found.
• IMS (Institute of Mine Seismology) offers ambient noise tomography services globally, including for urban applications (IMS).
• DAS-based urban subsurface imaging demonstrated in downtown Reno, NV using telecom fiber -- directly transferable to Berlin (Seismic Record 2025).
• Recent 2025 review paper: "Geophysical Exploration of Urban Underground Space: Current Status, Trends, and Future Directions" covers passive seismic methods for urban settings (ScienceDirect).

Key Vendors & Products

Integration with Three.js Model

• Leak locations: point markers with audio playback of leak signature.
• ANT velocity models: 3D volumetric slice displays (velocity cross-sections as textured planes).
• MASW profiles: 2D depth sections along survey lines, rendered as vertical planes in the 3D scene.
• Pipe condition data: color-coded pipe segments (good/degraded/critical).

TRL & Feasibility Rating

• TRL: 7-9 (leak detection = TRL 9; ambient noise tomography = TRL 6-7)
• Wilmersdorfer Str. applicability: HIGH for leak detection; MEDIUM for ambient noise tomography (requires dense sensor array).
• Data integration: MEDIUM-HIGH
• Recommendation: Quick win for leak detection (hire Echologics-equipped contractor). Medium-term for ANT (partner with GFZ Potsdam or university research group).

8. Quantum Gravity Gradiometry

Technology Principle

Quantum gravity gradiometers use atom interferometry to measure the gradient of the gravitational field with extreme precision. Two clouds of ultracold rubidium atoms are released in free-fall inside a vacuum chamber, separated vertically by ~1 m. Laser pulses create simultaneous atom interferometers that measure the difference in gravitational acceleration between the two heights. This differential measurement is sensitive to local density variations (voids, pipes, tunnels) while rejecting common-mode vibration noise that plagues conventional gravimeters.

The landmark 2022 Nature paper demonstrated the first outdoor field detection of an underground tunnel using this technology.

Detection Capabilities

Source: Nature 2022 -- "Quantum sensing for gravity cartography", University of Birmingham

Berlin-Specific Deployments & Data

• No Berlin-specific quantum gravity deployments found.
• UK Gravity Pioneer project (UK Ministry of Defence funded) drove the Birmingham demonstration and continues to develop applications including utility detection (gravity-pioneer.org).
• Exail (formerly iXblue/Muquans) manufactures the Absolute Quantum Gravimeter (AQG) for field deployment. Currently installed on Mount Etna for geophysical monitoring.
• A 2025 paper in ScienceDirect discusses "Application of gravity gradient measurement in the detection of urban underground space" (ScienceDirect).
• EPJ Quantum Technology (2025) review: "Quantum gravity gradiometry for future mass change science" (Springer).

Key Vendors & Products

Pricing: The AQG system costs approximately EUR 500K-1M. Not available for short-term rental. Research collaboration is the viable path.

Integration with Three.js Model

• Gravity gradient data: 2D map of gravity anomalies overlaid on the ground surface.
• Inversion results: 3D density model showing underground voids and mass concentrations.
• Render as volumetric anomaly indicators (colored blobs at estimated depths).
• Particularly powerful for detecting unknown voids not in any utility records.

TRL & Feasibility Rating

• TRL: 5-6 (first outdoor field test demonstrated 2022; not yet commercial for urban surveys)
• Wilmersdorfer Str. applicability: LOW-MEDIUM -- survey speed is too slow for routine use today, but would uniquely detect unknown voids.
• Data integration: MEDIUM -- requires inversion processing before 3D visualization.
• Recommendation: Long-term (>12 months). Monitor UK Gravity Pioneer commercialization timeline. Consider research partnership with University of Birmingham or Exail for a Berlin pilot (strong EU quantum research funding available).

9. Muon Tomography

Technology Principle

Cosmic ray muons are subatomic particles produced when cosmic radiation collides with Earth's atmosphere. They rain down continuously at a rate of ~10,000/m2/minute at sea level. Muons penetrate deeply through matter but are absorbed in proportion to material density. By placing detectors below or beside a target and measuring the muon flux from multiple directions, density variations can be reconstructed -- revealing voids, tunnels, dense structures, and material boundaries underground.

This is the same technique that discovered the "Big Void" in the Great Pyramid of Giza (ScanPyramids project, 2017).

Detection Capabilities

Sources: Nature Scientific Reports -- 3D Muography, phys.org 2025 -- muon urban mapping, arxiv 2503.23558 -- civil structures

Berlin-Specific Deployments & Data

• No Berlin-specific muon tomography deployment found.
• Jerusalem field test (2025): Confirmed muon tomography can effectively map hidden underground spaces in urban environments (phys.org).
• Muon Systems (Estonia-UK) offers non-destructive testing of civil infrastructure using muography (muon.systems).
• Muon Solutions (Finland) focuses on mining and industrial applications.
• Laser-plasma accelerators (2025 innovation) may dramatically reduce scan times by generating on-demand muon beams.
• Application to the Wilmersdorfer Str. U7 tunnel: a detector placed in the U-Bahn station could potentially map the surrounding soil structure and detect unknown voids/utilities around the tunnel.

Key Vendors & Products

Integration with Three.js Model

• Muon tomography produces 3D density maps (voxel grids).
• Render as semi-transparent isosurfaces in Three.js (voids in blue, dense objects in red).
• Particularly valuable for mapping the U7 tunnel structure and surrounding soil.
• Animation: show muon flux pathways as particle trails in the 3D scene.

TRL & Feasibility Rating

• TRL: 5-7 (archaeological/mining use = TRL 7; urban infrastructure = TRL 5)
• Wilmersdorfer Str. applicability: LOW-MEDIUM -- could map U7 tunnel surroundings but requires detector placement in the station and weeks of exposure.
• Data integration: MEDIUM -- volumetric data requires processing before visualization.
• Recommendation: Long-term research (>12 months). Contact Muon Systems (Estonia-UK) for feasibility assessment. Could be a unique demonstration project -- "muon tomography of a Berlin U-Bahn station."

10. LiDAR + Photogrammetry

Technology Principle

While LiDAR and photogrammetry are primarily surface technologies, they provide critical indirect evidence of underground infrastructure:

• Manhole cover mapping: Automatic detection and georeferencing of all manhole covers, valve covers, and access points.
• Surface settlement detection: Sub-centimeter elevation changes between surveys indicate subsurface movement.
• Vegetation stress: Anomalous vegetation patterns (NDVI) can indicate underground leaks or gas emissions.
• 3D surface context model: The above-ground 3D environment into which underground data is integrated.

Berlin's 3D Stadtmodell provides the foundation layer for the Three.js visualization.

Detection Capabilities

Berlin-Specific Deployments & Data

This is a goldmine for the project. Berlin provides extensive free open geodata:

• Berlin 3D Stadtmodell (3D City Model): Award-winning open data. Current 3D mesh model based on June 2025 flight survey. LoD2 buildings available as CityGML. Free download from Berlin Business Location Center (Berlin Open Data).
• 3DCityLoader: Tool to convert Berlin's open geodata into DXF, STL, OBJ formats -- directly usable in Three.js via glTF/OBJ import (3DCityLoader).
• DGM1 (Digital Terrain Model): 1 m grid spacing LiDAR-derived terrain from Airborne Laser Scanning (Berlin Open Data LiDAR tag).
• Geoportal Berlin: Central portal for WMS/WFS geospatial services (gdi.berlin.de).
• Berlin Environmental Atlas (Umweltatlas): Geoservices (WMS, WFS, Atom feed) for soil, water, vegetation data (berlin.de/umweltatlas).
• OpenStreetMap Berlin: Downloadable in PBF and Shapefile formats from Geofabrik. Includes mapped manholes, utility lines, and infrastructure.

Key Data Products for Three.js

Integration with Three.js Model

This is the foundation layer for the entire project:

1. Download Berlin LoD2 buildings for Wilmersdorfer Str. area via 3DCityLoader (OBJ format).
2. Import DGM1 terrain as Three.js PlaneGeometry with displacement map.
3. Apply orthophoto texture to terrain.
4. Place manhole markers from OSM data.
5. All underground data from other technologies layers beneath this surface model.

Libraries: iTowns, three-geo, OpenGlobus

TRL & Feasibility Rating

• TRL: 9 (operational, free, comprehensive)
• Wilmersdorfer Str. applicability: HIGHEST -- data already exists and is freely available.
• Data integration: HIGHEST -- direct 3D formats (OBJ, CityGML).
• Recommendation: QUICK WIN #0 (do this first). Download all Berlin open geodata for the Charlottenburg area today. This forms the 3D context into which all other data layers are integrated.

11. Satellite-Based Leak Detection & Novel Methods

Technology Principle

This category covers several emerging and complementary technologies:

1. ASTERRA (formerly Utilis) -- SAR-based water leak detection: Uses L-band SAR satellite data to detect the spectral signature of treated drinking water in soil. Algorithm distinguishes potable water leaks from natural moisture. Detects leaks as small as 0.5 L/min.

1. GHGSat -- Methane detection from space: Fleet of 16 satellites using shortwave infrared (SWIR) spectroscopy to detect methane at 25 x 25 m resolution, identifying leaks as small as ~100 kg/hr. Applicable to urban gas infrastructure.

1. Electromagnetic Induction (FDEM): Ground-based sensors that induce eddy currents in metallic subsurface objects. Used alongside GPR for comprehensive utility mapping.

1. Multi-physics fusion: Combining GPR + EMI + magnetic gradiometry + acoustic sensors for comprehensive underground utility detection. Growing market trend.

Detection Capabilities

Berlin-Specific Deployments & Data

• ASTERRA: Expanding globally. New Mexico awarded a 4-year statewide contract (Jan 2026). Phase 1 (May 2025): 82 leaks found, 240 GPM water loss reduction (WaterWorld). No confirmed Berlin/BWB deployment, but Berlin's water loss challenges make it a candidate.
• GHGSat: 16 satellites operational. 25 m resolution enables detection of individual buildings/pipes leaking methane. Berlin's GASAG gas network could be monitored. Madrid landfill demonstration in 2025 (phys.org).
• Underground Utility Mapping Market: Valued at USD 1.6 billion (2025), growing at 10% CAGR to USD 3.4 billion by 2033. EMI dominates, GPR growing fastest (Market Research Future).
• Multi-sensor fusion: Research demonstrates combining GPR, EMI, magnetic gradiometry, passive magnetic fields, and vibro-acoustics for comprehensive utility detection (Academia).
• Open Infrastructure Map: Free visualization of global electricity, telecom, oil, and gas infrastructure from OpenStreetMap (openinframap.org).

Key Vendors & Products

Integration with Three.js Model

• ASTERRA data: Leak probability heatmap overlaid on ground surface (GeoJSON polygons).
• GHGSat: Methane plume visualization as animated particle systems above the ground.
• FDEM: Conductivity map as color-coded ground overlay (metallic objects = high conductivity).
• Multi-physics fusion: Combined confidence map showing utility locations with certainty levels.

TRL & Feasibility Rating

• TRL: 7-9 (ASTERRA = TRL 8; GHGSat = TRL 8; FDEM = TRL 9; multi-physics fusion = TRL 7)
• Wilmersdorfer Str. applicability: MEDIUM-HIGH -- ASTERRA could identify leaks in BWB network; GHGSat for GASAG gas monitoring; FDEM as complement to GPR.
• Data integration: HIGH for all -- standard geospatial outputs.
• Recommendation: Medium-term. Contact ASTERRA and GHGSat for pilot proposals. Include FDEM in any GPR survey as a complementary method.

Quick Wins (Available Today,

#	Action	Cost	Timeline	Data for Three.js
1	Download Berlin 3D Stadtmodell (LoD2 buildings, DGM1 terrain, orthophotos)	EUR 0	1 day	OBJ/CityGML buildings, GeoTIFF terrain
2	Download EGMS InSAR data for Charlottenburg	EUR 0	1-2 days	CSV point cloud with subsidence velocities
3	Extract OSM underground data (manholes, utility lines, U-Bahn routes)	EUR 0	1 day	GeoJSON points and lines
4	Query infrest Leico portal for utility line data on Wilmersdorfer Str.	EUR 0-200	1-2 weeks	PDF/DXF utility plans
5	Commission GPR survey of Wilmersdorfer Str.	EUR 2K-5K	1-2 weeks	Pipe/cable XYZ coordinates
6	Query Stromnetz Berlin Open Data for electricity grid data	EUR 0	1 day	GeoJSON/WMS
7	Check Open Infrastructure Map for existing mapped utilities	EUR 0	1 hour	OSM data overlay
8	Download Berlin Environmental Atlas soil/water table data	EUR 0	1 day	WMS/WFS layers

---

Medium-Term (6-12 Months, Partnerships Needed)

#	Action	Est. Cost	Partners	Value
1	LoRaWAN sensor network in Wilmersdorfer Str. manholes (20 sensors)	EUR 5K-15K	Smart City Solutions, The Things Network Berlin	Real-time underground telemetry
2	Thermal infrared drone survey (pre-dawn, autumn)	EUR 3K-8K	Licensed drone operator, BEW	District heating + sewer thermal map
3	ASTERRA satellite water leak scan of Charlottenburg	EUR 5K-20K	ASTERRA, BWB	Leak probability map
4	Dark fiber DAS pilot on Wilmersdorfer Str.	EUR 100K-300K	AP Sensing, Deutsche Telekom, BWB	Continuous acoustic monitoring
5	Ambient noise tomography study with GFZ Potsdam	EUR 20K-50K	GFZ Potsdam, university partner	Subsurface velocity model
6	GHGSat gas leak scan of Charlottenburg	EUR 10K-30K	GHGSat, GASAG	Methane leak locations
7	Multi-physics GPR + FDEM + magnetics survey	EUR 8K-20K	Specialized geophysics contractor	Comprehensive utility map

---

Long-Term / Research (>12 Months)

#	Technology	Readiness	Path Forward
1	Quantum gravity gradiometry	TRL 5-6	Contact University of Birmingham / Gravity Pioneer for Berlin pilot proposal. Apply for EU quantum technology funding.
2	Muon tomography of U7 station	TRL 5	Contact Muon Systems (Estonia-UK) for feasibility study. Place detector in U-Bahn station.
3	RF/WiFi tomography	TRL 3-4	Monitor TU Berlin research. Not ready for deployment.
4	Full-coverage DAS network (city-scale)	TRL 7-8	Requires BWB/BEW partnership and significant capital. Model after Hamburg WAVE network.
5	AI-integrated multi-sensor fusion platform	TRL 6-7	Combine all data sources into unified AI-driven subsurface model. Research opportunity.

---

Berlin Open Data Sources Discovered

Source	URL	Data Type	Format	Cost
Berlin 3D Stadtmodell	businesslocationcenter.de/downloadportal	LoD2 buildings, 3D mesh	CityGML, OBJ, STL, DXF	Free
3DCityLoader	3dcityloader.com	Converted 3D models	DXF, STL, OBJ	Free
Geoportal Berlin	gdi.berlin.de	WMS/WFS geodata services	WMS, WFS	Free
Berlin Open Data / LiDAR	daten.berlin.de (LiDAR tag)	DGM1, DOM	GeoTIFF, XYZ	Free
Berlin Environmental Atlas	berlin.de/umweltatlas	Soil, water, vegetation	WMS, WFS, PDF	Free
EGMS Ground Motion	egms.land.copernicus.eu	InSAR subsidence	CSV, GeoPackage	Free
German Ground Motion (BBD)	BGR portal	InSAR subsidence (Germany)	Web viewer	Free
Sentinel-1 SAR Data	dataspace.copernicus.eu	Raw SAR imagery	SAFE format	Free
ODIS Berlin	daten.odis-berlin.de	Curated Berlin geodata	CSV, GeoJSON, SHP	Free
OpenStreetMap Berlin	geofabrik.de (Berlin)	Streets, buildings, manholes	PBF, SHP	Free
Open Infrastructure Map	openinframap.org	Electricity, telecom, gas, oil	OSM-based web map	Free
Stromnetz Berlin Open Data	stromnetz.berlin/open-data	Electricity grid data	Via Berlin Open Data	Free
infrest Leico	infrest.de	Utility line information	PDF, digital plans	Free-Low

---

EU Funding Opportunities

Programme	Call	Relevance	Budget	Deadline
Horizon Europe Cluster 4 (Digital, Industry, Space)	HORIZON-CL4-2026-04	Digital twins, AI, sensing	~EUR 6M/project	Opening Jan 2026, closing Apr-Sep 2026-2027
Advanced Local Digital Twins with AI	HORIZON-CL4-2026-04-DIGITAL-EMERGING-09	Directly relevant: AI + digital twin for infrastructure	~EUR 6M	2026
EU Mission: Climate-Neutral Smart Cities	100 Cities Mission	Smart city infrastructure digitization	EUR 360M (2025-2027)	Berlin is a candidate city
Horizon Europe 2026-27	Multiple calls	EUR 14 billion total for research, innovation, green/digital	Varies	2026-2027
Digital Twin for Europe (TwinEU)	CORDIS project 101136119	European digital twin infrastructure	Ongoing	N/A (active project)
Gemeinsam Digital: Berlin	Phase B pilot projects	Federal smart city funding for Berlin	Funded through Dec 2026	Apply through Berlin Senate
EIB Water and Climate	Berlin Water Programme	EUR-scale investment in Berlin water infrastructure	Major	Ongoing

Sources: Horizon Europe Cluster 4, CORDIS TwinEU, EU Cities Mission

---

Recommended Next Steps

Immediate (This Week)

1. Download all free Berlin geodata for the Wilmersdorfer Str. / Charlottenburg area:
• 3D Stadtmodell LoD2 buildings (OBJ via 3DCityLoader)
• DGM1 terrain model
• Orthophotos (WMTS service)
• OSM data (manholes, streets, U-Bahn)
• Environmental Atlas layers (soil, water table)

1. Register on EGMS portal and download InSAR ground motion data for Berlin.

1. Query infrest Leico for official utility line positions on Wilmersdorfer Str.

1. Build the Three.js base layer: terrain + buildings + street surface + manhole markers.

Short-Term (1-4 Weeks)

1. Commission a professional GPR survey of Wilmersdorfer Str. Get quotes from 2-3 Berlin-based Leitungsortung providers.

1. Request Stromnetz Berlin cable information for the street via their online portal.

1. Integrate all available data into a unified Three.js underground model.

Medium-Term (1-6 Months)

1. Deploy LoRaWAN sensors in selected manholes along the street.

1. Plan autumn thermal drone survey (coordinate with BEW).

1. Submit expressions of interest to ASTERRA and GHGSat for Berlin pilots.

1. Contact GFZ Potsdam about ambient noise tomography collaboration.

Long-Term (6-18 Months)

1. Apply for Horizon Europe funding under Cluster 4 digital twin calls.

1. Explore quantum gravity and muon tomography research partnerships.

1. Develop AI fusion platform integrating all sensor data into a unified subsurface model.

---

Technology Comparison Matrix

Technology	TRL	Cost (Pilot)	Depth	Resolution	Real-Time	Berlin Data	Three.js Fit
GPR	9	EUR 2-5K	0-8 m	5-15 cm	No	Via survey	HIGH
LiDAR/3D Model	9	EUR 0	Surface	1 m (DGM)	No	FREE	HIGHEST
InSAR/EGMS	8-9	EUR 0	Surface deformation	5-20 m	No	FREE	HIGH
LoRaWAN IoT	9	EUR 5-15K	In-situ	Point sensors	YES	Deploy new	HIGH
Thermal IR	8-9	EUR 3-8K	0-3 m (indirect)	5-20 cm	No	Via survey	HIGH
Fiber DAS/DTS	8-9	EUR 100-300K	Along fiber	0.5-10 m	YES	Partnership	HIGH
Acoustic/Seismic	7-9	EUR 5-50K	0-100 m	1-50 m	Partial	Via survey	MEDIUM
ASTERRA SAR	8	EUR 5-20K	0-8 m	~100 m	No	Subscription	HIGH
FDEM/EMI	9	EUR 3-10K	0-6 m	10-50 cm	No	Via survey	HIGH
Quantum Gravity	5-6	EUR 500K+	0-10 m	0.5 m	No	None	MEDIUM
Muon Tomography	5-7	EUR 50K+	8-400 m	5 mm-1 m	No	None	MEDIUM
RF Tomography	3-4	Research	0-10 m	0.5-2 m	Possible	None	LOW

---

Report compiled from 30+ web searches across peer-reviewed journals, vendor websites, EU portals, Berlin open data platforms, and industry reports. All URLs verified as of 2026-03-25.

Back to top
